Material Filtering#
Materials lists#
As the size of the materials files has grown over the years it has become more difficult to find the material you are looking for.
In INSUL version 9.0 there are three tools to help you, filtering or searching by description. You can filter the list by Category or by Manufacturer.
There are at present 8 different categories:
- Fibre cement
- Glazing
- Gypsum
- Insulated Panels
- Masonry
- Profiled Metal
- Other
- Wood
If you select for instance Gypsum, then only the Gypsum board materials are shown.
Floor cover lists#
There are 10 different categories of floor covers:
- Tiles
- Screed
- Timber
- Vinyl
- Cork
- Rubber
- Carpet
- Floating floor
- Raised Access floor
- Miscellaneous
Countries & Regions#
INSUL has built up databases for materials from many countries.
Info
From INSUL version 7.0, these databases are combined into one file each for materials, absorbers, floor coverings, glazing materials and sheet metal profiles.
The following countries and regions are currently included in INSUL:
- Australia
- Belgium
- Chile
- China
- France
- Germany
- Hong Kong
- India
- Italy
- Korea
- Middle East
- The Netherlands
- New Zealand
- Poland
- Spain
- Sweden
- U.K.
- U.S.A

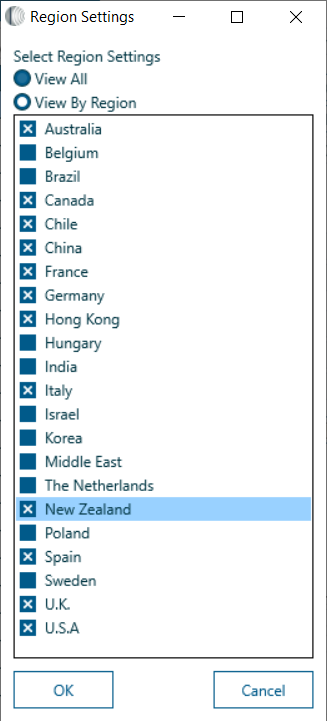

The user can select to filter the database so that only the materials from one country are shown, or from many countries. The countries selected are shown in the status bar at the bottom of the main screen. The filter can be adjusted in the materials editor.
