Calculation Settings

The Calculation tab provides a set of tabs for adjusting aspects of INSUL's calculation configuration: Properties, Leaks, Roof, Glazing and Evaluation.

Properties

The Calculation Properties tab allows adjustment of:

• Sewell's Correction, which adjusts the predictions based on panel size.
• Edge damping
• The Profile Panel calculation setting, Use Lam Windle
• Dimensions for the Test Panel
• Dimensions for the Glazing Test Panel
• Dimensions for the Roof/Floor
• Room properties, specifically Volume and Reveberation time

Leaks

The Calculation Leak tab provides options for adjusting the leak calculation configuration.

Roof

The Calculation Roof tab allows adjustment of rainfall noise settings.

Glazing

The Glazing tab provides options to adjust the model setup for the wave-based glazing model. Further details are available here.

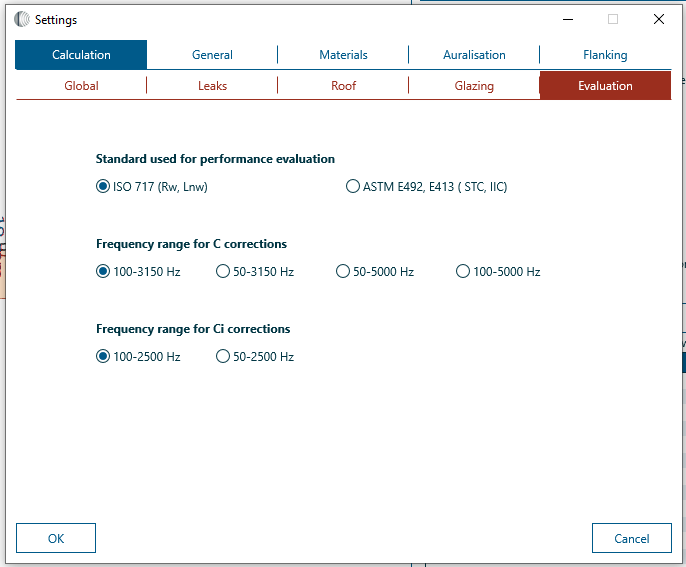

Evaluation

The Calculation Evaluation tab provides options for adjusting single figure index evaluation seetings including the frequency range for assessment of the C-Correction when using the ISO 717 evaluation method.
